Continuation of GitOps on K3s with ArgoCD. ArgoCD is running and deploying the Go REST service from Git. Now split it into stage and prod environments.
The problem with duplicating YAML
The naive approach is to copy the projects/simple-rest-api/ folder twice - once for stage, once for prod - and change the namespace, replicas, and host in each copy. That works until you need to update a probe, add a label, or change resource limits. You make the change in one folder and forget the other. They drift.
Kustomize solves this with a base + overlay model: write the manifests once in common/, then write small patches per environment. Only the diff lives in stage/ and prod/.
1. Update the Go service to read env vars
The full updated service is at github.com/mk48/simple-http/tree/02-reading-env.
It adds two libraries:
"github.com/caarlos0/env/v11" // parses env vars into a struct
"github.com/joho/godotenv" // loads a .env file locally (ignored in prod)
type AppENV struct {
Env string `env:"ENV,notEmpty"`
ConnectionString string `env:"CONNECTION_STR,notEmpty"`
}
func ReadAppENVs(log *slog.Logger) AppENV {
cfg := AppENV{}
err := godotenv.Load()
if err != nil {
// .env file won't exist in the cluster - that's fine, use system env vars
log.Info("Error loading .env file. Using system's environment variables")
}
if err := env.Parse(&cfg); err != nil {
log.Error("Error in parsing environment variables", "err", err)
os.Exit(1)
}
return cfg
}
We can also expose the environment variable via a simple /env url. This is only for testing purpose, normally we should not expose.
//file: main.go
env := ReadAppENVs(e.Logger)
// just simple end point to expose the environment variables
e.GET("/env", func(c *echo.Context) error {
return c.JSON(http.StatusOK, env) //don't send all if it contains secrets
})
Push to main - the existing ArgoCD setup deploys it automatically.
2. The new infra repo structure
The infra repo at github.com/mk48/k3s-infra changed in two places:
k3s-infra/
├── argocd/
│ ├── root-app.yaml # unchanged - still the one manual apply
│ ├── ingress.yaml
│ └── apps/ # ← became a Helm chart
│ ├── Chart.yaml
│ ├── values.yaml # list of environments
│ └── templates/
│ └── simple-rest-api.yaml # generates one ArgoCD App per env
└── projects/
└── simple-rest-api/ # ← restructured with Kustomize
├── common/ # base manifests (shared across all envs)
│ ├── deployment.yaml
│ ├── service.yaml
│ ├── ingress.yaml
│ └── kustomization.yaml
├── stage/ # stage-specific patches
│ ├── kustomization.yaml
│ └── configmap.yaml
└── prod/ # prod-specific patches
├── kustomization.yaml
└── configmap.yaml
3. Kustomize - common base and overlays
common/ - write once
No namespace here. No environment-specific values. Just the canonical shape of the app.
common/deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: hello-world
spec:
replicas: 2
selector:
matchLabels:
app: hello-world
template:
metadata:
labels:
app: hello-world
spec:
containers:
- name: hello-world
image: ghcr.io/mk48/simple-http:latest
imagePullPolicy: IfNotPresent
resources:
requests:
cpu: '2m'
memory: '12Mi'
limits:
cpu: 100m
memory: 64Mi
ports:
- containerPort: 8080
name: web
protocol: TCP
readinessProbe:
httpGet:
path: /
port: web
periodSeconds: 30
livenessProbe:
httpGet:
path: /
port: web
initialDelaySeconds: 3
periodSeconds: 30
common/service.yaml
apiVersion: v1
kind: Service
metadata:
name: hello-world-service
spec:
selector:
app: hello-world
ports:
- name: http
protocol: TCP
port: 80
targetPort: 8080
common/ingress.yaml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: hello-world-ingress
spec:
ingressClassName: traefik
rules:
- host: hello.local
http:
paths:
- path: /
pathType: Prefix
backend:
service:
name: hello-world-service
port:
number: 80
common/kustomization.yaml - declares which files belong to this base and adds a label to every resource:
apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization
labels:
- includeSelectors: true
pairs:
app: hello-world
resources:
- deployment.yaml
- ingress.yaml
- service.yaml
stage/ - patch only what differs
Stage gets 1 replica, its own hostname, its own image tag, and its ConfigMap injected as env vars. Everything else inherits from common/.
stage/kustomization.yaml
apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization
namespace: pi-stage # sets namespace on every resource from common/
resources:
- ../common # pull in the base
- configmap.yaml # add the ConfigMap resource
patches:
- target:
kind: Ingress
name: hello-world-ingress
patch: |-
- op: replace
path: /spec/rules/0/host
value: hello-stage.local
- target:
kind: Deployment
name: hello-world
patch: |-
- op: replace
path: /spec/replicas
value: 1
- target:
kind: Deployment
name: hello-world
patch: |-
- op: add
path: /spec/template/spec/containers/0/envFrom
value:
- configMapRef:
name: hello-world-config
images:
- name: ghcr.io/mk48/simple-http
newTag: '4' # pin to a specific image tag
stage/configmap.yaml
apiVersion: v1
kind: ConfigMap
metadata:
name: hello-world-config
data:
ENV: 'stage'
CONNECTION_STR: 'some staging value'
prod/ - same pattern, different values
prod/kustomization.yaml
apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization
namespace: pi-prod
resources:
- ../common
- configmap.yaml
patches:
- target:
kind: Ingress
name: hello-world-ingress
patch: |-
- op: replace
path: /spec/rules/0/host
value: hello.local
- target:
kind: Deployment
name: hello-world
patch: |-
- op: add
path: /spec/template/spec/containers/0/envFrom
value:
- configMapRef:
name: hello-world-config
images:
- name: ghcr.io/mk48/simple-http
newTag: '4'
prod/configmap.yaml
apiVersion: v1
kind: ConfigMap
metadata:
name: hello-world-config
data:
ENV: 'prod'
CONNECTION_STR: 'some production value'
Prod keeps 2 replicas (the default from common/) - no patch needed.
Preview the final manifests locally
Before pushing, verify what Kustomize will generate:
kubectl kustomize projects/simple-rest-api/stage
kubectl kustomize projects/simple-rest-api/prod
This outputs the fully rendered YAML exactly as ArgoCD will apply it - useful for catching mistakes without touching the cluster.
4. Helm in argocd/apps/ - one app definition, N environments
Previously argocd/apps/ held plain YAML files - one Application per app. Now it needs two Applications per app (stage + prod). Adding a third environment would mean another manual file.
Instead, argocd/apps/ became a Helm chart that loops over an environment list and generates one ArgoCD Application per entry.
argocd/apps/values.yaml - the only file you edit to add/remove environments:
clusters:
stage:
name: stage
prod:
name: prod
argocd/apps/Chart.yaml
apiVersion: v2
appVersion: '1.0'
description: Applications
name: applications
version: 0.1.0
argocd/apps/templates/simple-rest-api.yaml - generates one Application per entry in values.yaml:
{{- range $i, $cluster := .Values.clusters }}
---
apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
name: simple-rest-api-{{ $cluster.name }}
namespace: argocd
finalizers:
- resources-finalizer.argocd.argoproj.io
spec:
project: default
source:
repoURL: https://github.com/mk48/k3s-infra
targetRevision: main
path: projects/simple-rest-api/{{ $cluster.name }}
destination:
server: https://kubernetes.default.svc
namespace: pi-{{ $cluster.name }}
syncPolicy:
automated:
prune: true
selfHeal: true
syncOptions:
- CreateNamespace=true
{{- end }}
The loop produces simple-rest-api-stage and simple-rest-api-prod from a single template. Adding a canary environment in the future means one line in values.yaml.
Since argocd/apps/ is now a Helm chart, the root app picks it up automatically - no changes needed to root-app.yaml.
5. Add the stage hostname
Add hello-stage.local to your Windows hosts file:
192.168.0.51 argocd.local
192.168.0.51 hello.local
192.168.0.51 hello-stage.local
6. Result
Push the infra repo changes. ArgoCD detects the updated argocd/apps/ chart, renders the two Applications, and syncs both environments.
sudo kubectl get applications -n argocd
# NAME SYNC STATUS HEALTH STATUS
# root Synced Healthy
# simple-rest-api-stage Synced Healthy
# simple-rest-api-prod Synced Healthy
sudo kubectl get pods -n pi-stage
# hello-world-xxx 1/1 Running (1 replica)
sudo kubectl get pods -n pi-prod
# hello-world-xxx 1/1 Running
# hello-world-yyy 1/1 Running (2 replicas)

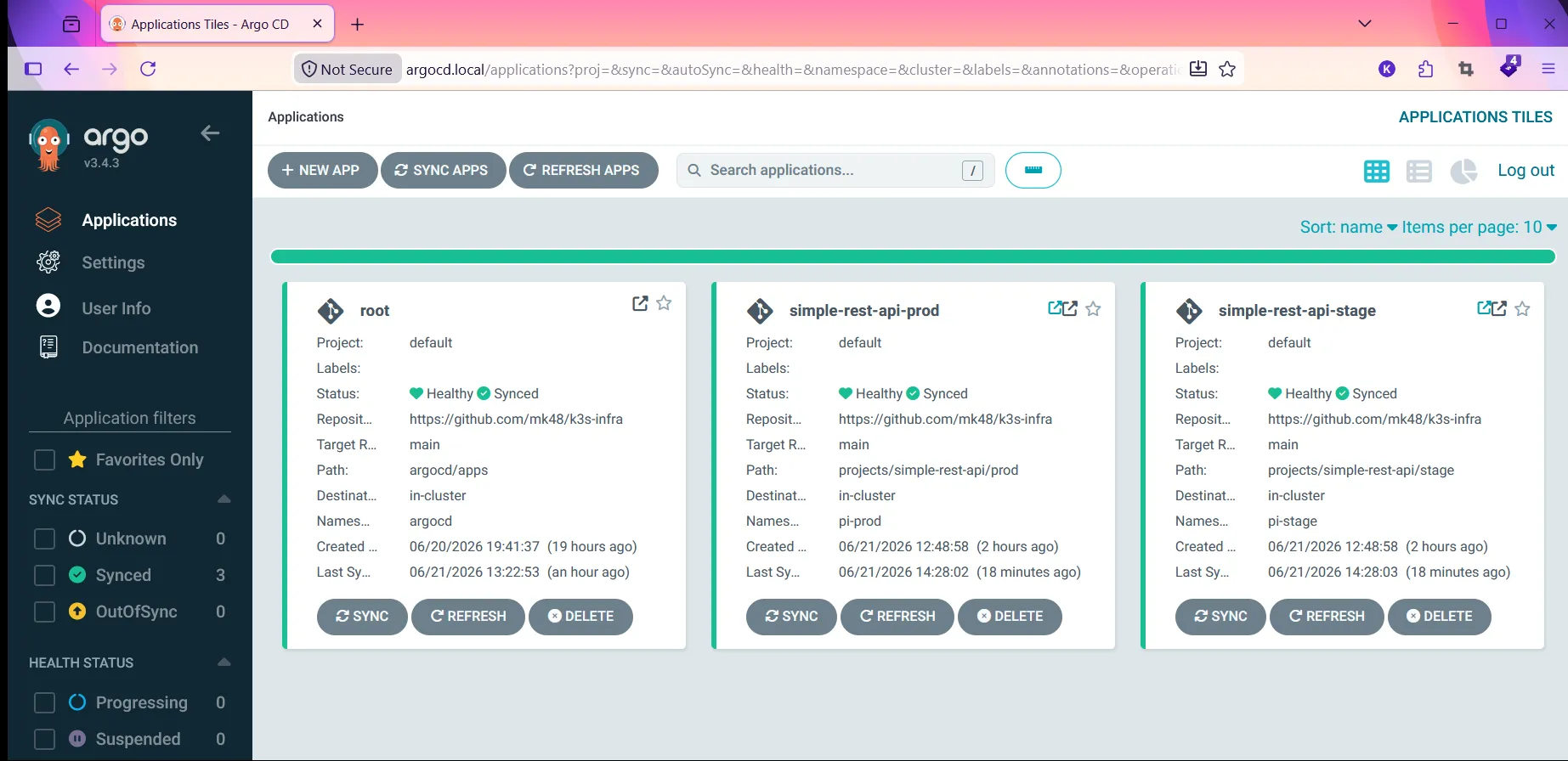

We can see the ArgoCD has two applications deployed now.

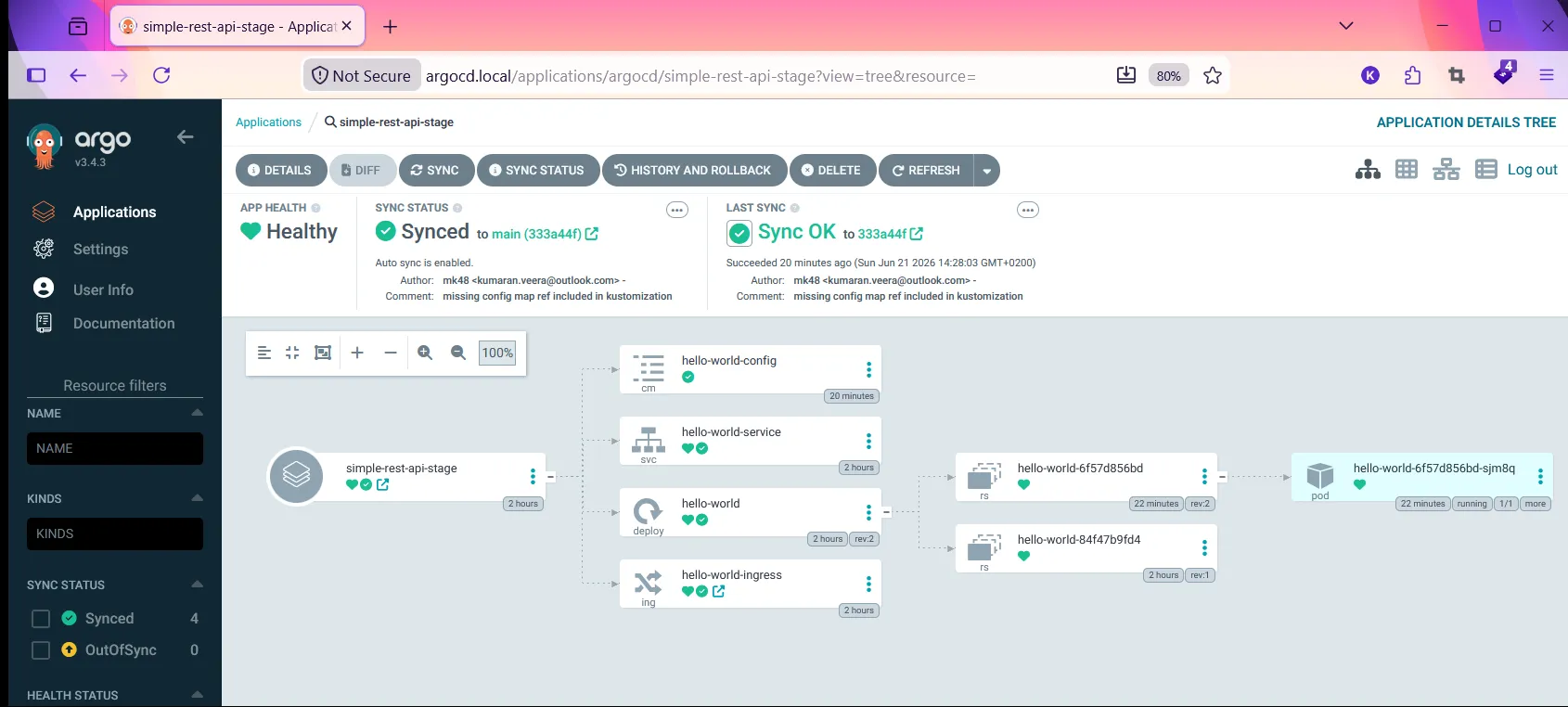

The stage has one replica

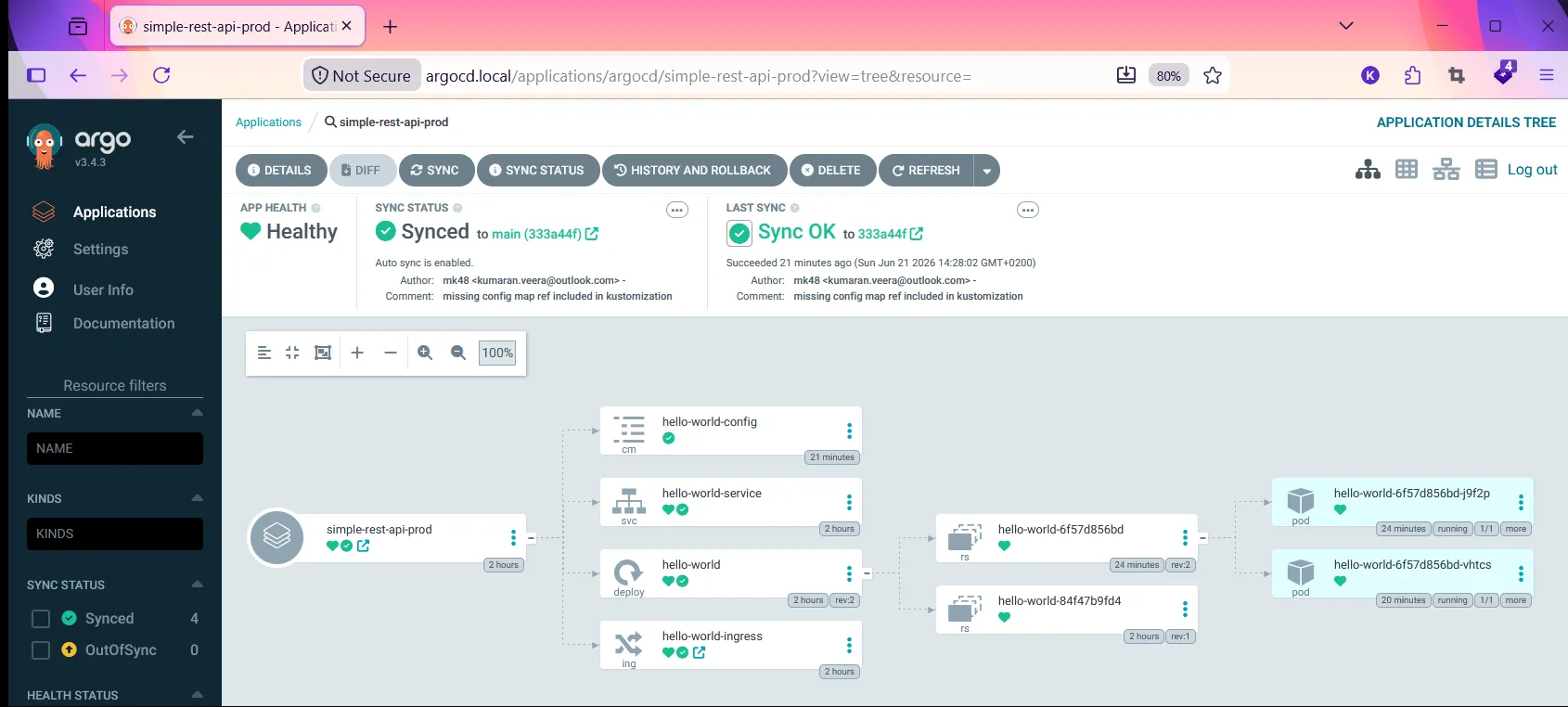

Production has two replicas
curl http://hello-stage.local # Hello, World from: hello-world-xxx (ENV=stage)
curl http://hello.local # Hello, World from: hello-world-yyy (ENV=prod)

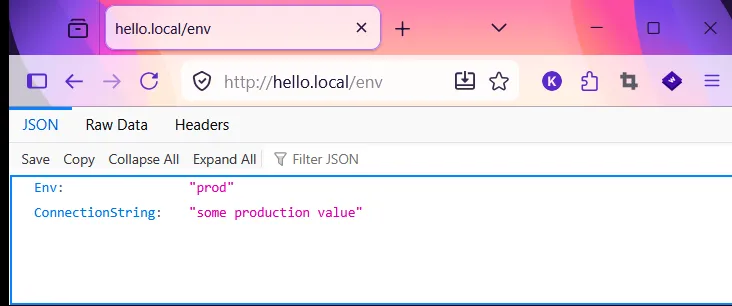

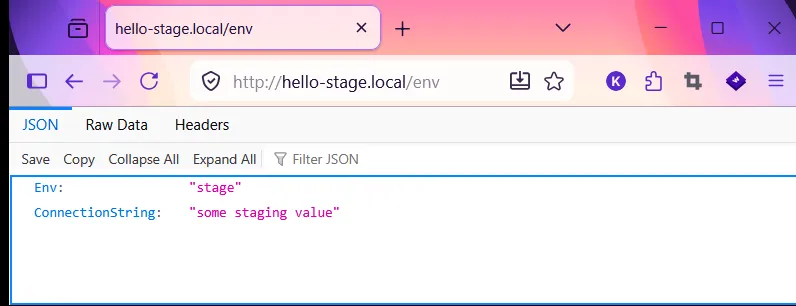

By visiting the /env url we can see the environment variables, we already exposed the endpoints in our Go program.
